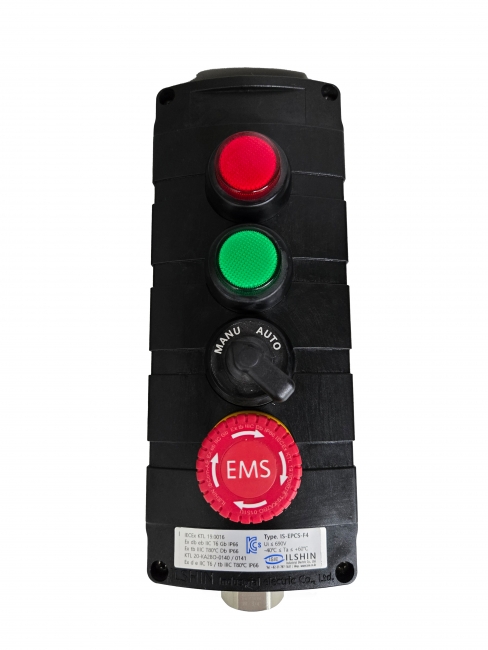

IS-EPCS-**

방폭 GRP 콘트롤 스위치_ Control Station
Explosion-proof and Dust Explosion-proof GRP Control Station
EPCS Series for Hazardous Location


Protection Grade
Ex db eb IIC T6 Gb IP66 for Zone 21·22 (IECEx)
Ex tb IIIC T80℃ Db IP66 for Zone 21·22 (IECEx)


Ambient temperature

Tamb : -40℃ ~ +60℃

List

Drawing





Speciflcation

- Main Body : Engineering plastic (GRP)                                                                                               - ISCOM-MD Series 별도문의
- Terminal Box : Engineering plastic (GRP)                                                                                         - ISCOM-AE Series 별도문의
- Bolt & Washer : Stainless Steel
- Unit : Push Button, Selector Switch
           Emergency Switch, Pilot Lamp (Color : Red, Green, Yellow)
- Rating : 690V이하, 13A이하 (Switch), 10A이하 (Ammeter)
- Iscom : AE(동작부품)series, MD(모듈장치)series, Ex ammeter
              Ex accessories 부품들의 조합

Ordering Number

 Model No.

Width(A)

Height(B)

Depth(C)

Mount(D)

Mount(E)

IS-EPCS-1

94

97

80

80

63

IS-EPCS-1-TB

94

194

80

80

63

IS-EPCS-2

94

139

80

80

105

IS-EPCS-2-TB

94

236

80

80

105

IS-EPCS-3

94

188

80

80

150

IS-EPCS-3-TB

94

285

80

80

150

IS-EPCS-4

94

230

80

80

190

IS-EPCS-4-TB

94

327

80

80

190
