Fitting Accessories-3

방폭 배관 악세사리_ Conduit  Fittings
Explosion-proof Fitting Accessories
for Hazardous Location

Protection Grade
Ex d ⅡC / Ex e ⅡC / Ex tD A20 IP66

THREAD : PF, NPT, METRIC 가능

List

FDB, ISBD

Flame-proof Brether & Drain plug ISBD/FDB Series for Hazardous Location (Protection Grade) Ex dⅡC



◎ Standard Finish
- Material : Natural of Stainless Steel
- Thread : Male 1/2”(16C)
- Function : Breather & Drain

ISBD



Application
Drain plug and breather are installed in enclosures or conduit system to:
- provide ventilation to minimize
- condensation
- drain accumulated condensate
- at least on breather should be used with such drain or in lower section of
conduit system
- universal breather or drain functions as breath when mounted at the top of
an enclosure, or as a drain when mounted in be bottom of an enclosure
- drains and breathers are installed in hubs drilled and tapped openings

XL

- Locknut : XL Series (Protection Grade) Ex d ⅡC


◎ Material
​- Stainless Steel or Steel or Brass



◎ Selection Table

Conduit Size

 Dimension (mm)

A

B

C

1 / 2"(16C)

29

27

3

3 / 4"(22C)

36

33

3

1"(28C)

44

41

5

1-1 / 4"(36C)

55

60

5

1 / 2"(42C)

63

67

8

2"(54C)

76

69

8

2-1 / 2"(70C)

94

84

8

3"(82C)

106

97

8

4"(104C)

135

125

10








SEALING COMPOUND(SELPOD-A)

◎ Specification
- Supplied with the solution and asbestos packing. This sealing compound makes a seal of sufficient strength
   and can be used for both vertical type and any angle type sealing fittings.
   The solution has a effect of adjusting the setting time and may save the site time on installation.

◎ Attention in Use
- As SELPOD powder is changed in quality by moisture in the air, keep the container tightly closed.
- Hardened sealing compound has rather high insulation resistance in the dry condition. However, it shall not be
   used as a insulation material. Never make a seal in the space where made.
- Do not add the solution or water after the compound starts hardening. Special attention to be paid that SELPOD
   will not be hardened by such a treatment.

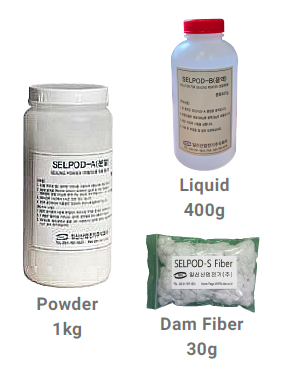

◎ SELPOD-A Set (POWDER-LIQUID HYBRID)



◎ Selection Table


Fitting

 Requirement (g)

Vertical

Horizonntal

Horizonntal

1 / 2"(16C)

50

90

120

3 / 4"(22C)

70

110

140

1"(28C)

120

130

210

1-1 / 4"(36C)

210

220

260

1-1 / 2"(42C)

250

270

300

2"(54C)

400

440

430

2-1 / 2"(70C)

700

800

500

3"(82C)

1000

1050

600

4"(104C)

1800

2000

1000




SELPOD-A2 Set(SOLID DOUGH MIXED)



◎ Selection Table


ISCSD Size

 Requirement (g)

Total(g)

A(주제)

B(경화제)

1 / 2"(16C)

5g

5g

10g

3 / 4"(22C)

7.5g

7.5g

15g

1"(28C)

15g

15g

30g

1-1 / 4"(36C)

27g

27g

54g

1-1 / 2"(42C)

45g

45g

90g

2"(54C)

75g

75g

150g
