IS-GSF-**

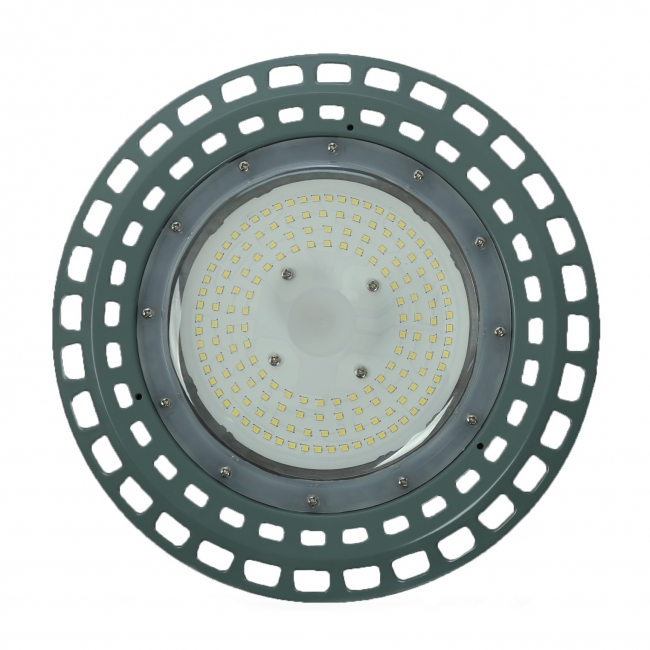

LED Lighting Fixture IS-GSF-** series
Protection Grade
WEATHER-PROOF LIGHTING
고효율 인증 IP66
Drawing
Standard Meterial
- Main Body : Die-Cast Aluminium Alloy
- Reflector : Steel (분체도장)
- Bracket : Steel (분체도장)
- Glass : Polycarbonate
- Mounting Box : Die-Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel
◎ Srandard Color
- Mounting Box : Munsell No. 7.5BG 6/1.5
- Head : Munsell No. 7.5BG 6/1.5
◎ Technical Data
- Rated Voltage : AC 220V
- Rated Wattage : 60W/80W/100W/120W/150W/200W
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22C), 1"(28C)
Light Distribution Curve
◎ Weight
Mounting Type |
Model No. |
Weight |
Celling |
IS-GSF-**-01 |
3.1kg |
pendant |
IS-GSF-**-02 |
3.6kg |
Bracket |
IS-GSF-**-03 |
3.6kg |
Goose-neck |
IS-GSF-**-04 |
|
◎ Mounting Box
Outward |
Hole space |
124 x 124 |
100 x 100 |
Ordering Number
Lamp |
Watt |
Celling Type |
Pendant Type |
Bracket Type |
Goose-neck Type |
LED |
60W |
IS-GSF60-01 |
IS-GSF60-02 |
IS-GSF60-03 |
IS-GSF60-04 |
LED |
80W |
IS-GSF80-01 |
IS-GSF80-02 |
IS-GSF80-03 |
IS-GSF80-04 |
LED |
100w |
IS-GSF100-01 |
IS-GSF100-02 |
IS-GSF100-03 |
IS-GSF100-04 |
LED |
120W |
IS-GSF120-01 |
IS-GSF120-02 |
IS-GSF120-03 |
IS-GSF120-04 |
LED |
150W |
IS-GSF150-01 |
IS-GSF150-02 |
IS-GSF150-03 |
IS-GSF150-04 |
LED |
200W |
IS-GSF200-01 |
IS-GSF200-02 |
IS-GSF200-03 |
IS-GSF200-04 |
