ISCSD-**

방폭 복합형 커넥터_ Conduit Fittings
Explosion-proof Cable Sealing Device
ISCSD Series for Hazardous location

Protection Grade
Ex d IIC IP66 for Zone 1·2


ISCSD-F : ISCSD Only Flexible
ISCSD-G : ISCSD Only Gland

List

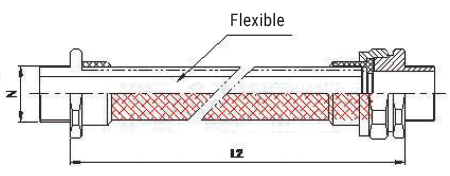

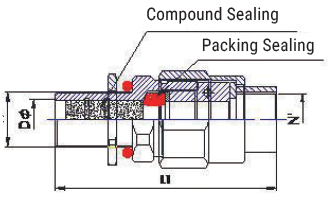

Drawing






Speciflcation

- ISCSD-** (Flame-Proof Type)
> Size : 16C(1/ 2”)~104C(4”)
> Material : Brass(Ni-Plated)
> Thread : PF, NPT, METRIC

- Flexible (General Type)
> Size : 16C(1/ 2”)~104C(4”)
> Flexible Tube : Stainless steel
> End Fitting : Stainless steel or Brass(Ni-Palted)
> Thread : PF, NPT, METRIC
> Enhanced Flexibilty & Drain Type

Standard Finish

- Natural of Stainless Steel
- Ni Plated

◎ Note
- Explosion Proof Item STEEL CONDUIT and can
   be conveniently used for the connection.

- Use of FLEXIBLE TUBE can be natural drainage
   structure during condensation.

- IlShin Cable Sealing Device is an accredited
   explosion proof products.

Selection Table

Model No.

Conduit Size

 Dimension (mm)

Cable Out
Diameter

Weight

N

N'

A

B

L₁

L2

ISCSD-16

1/2"(16C)

1/2"

1/2"

37

34

80.5

15

 500
 ~
OVER

φ11~13

0.619

ISCSD-22

3/4"(22c)

3/4"

3/4"

41

38

83

20

φ15~17

0.825

ISCSD-28

1"(28C)

1"

1"

50

47

93.5

25

φ20~22

1.252

ISCSD-36

1-1/4"(36C)

1-1/4"

1-1/4"

58

55

101

33

φ18~22 / φ22~26

1.839

ISCSD-36

1-1/2"(42C)

1-1/2"

1-1/2"

67

63

114

39

φ23~27 / φ27~31

2.595

ISCSD-54

2"(54C)

2"

2"

80

75

117.5

51

φ27~32 / φ32~38

3.414

ISCSD-70

2-1/2"(70C)

2-1/2"

2-1/2"

98

93

130

62

φ41~46

5.713

ISCSD-82

3"(82C)

3"

3"

114

108.5

133

77

φ52~58

6.994

ISCSD-104

4"(104C)

4"

4"

146

138

139

100

φ64~70

11.497
