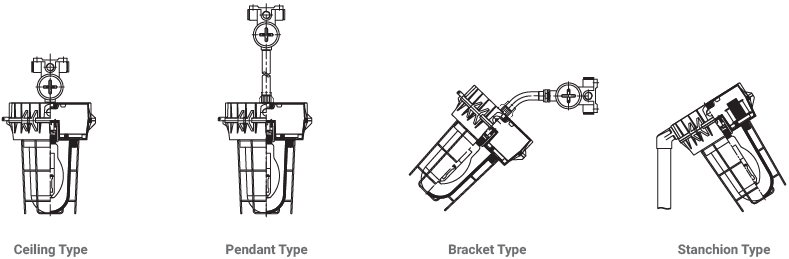

Drawing
Standard Material
- Main Body : Cast Aluminum Alloy
- Cover : Cast Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- Guard : Stainless Steel
- Mounting Box : Die-Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please
◎ Technical Data
- Rated Voltage : AC 100~240V Below
- Rated Wattage : 250W Below
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22)
Weight
Mounting Typed | Model No. | Weight |
Ceiling | VSHL-01 | 9.5kg |
Pendeant | VSHL-02 | 10kg |
Bracket | VSHL-03 | 10kg |
Stanchion | VSHL-04 |
|
◎ Mounting Box Hole Size
Outward | Hole space |
115 x 115 | 89 x 89 |
◎ Ordering Number
Lamp | Watt | Ceiling Type | Pendant Type | Bracket Type | Stanchion Type |
High | 150W | VSHL-NH215-01 | VSHL-NH215-02 | VSHL-NH215-03 | VSHL-NH215-04 |
200W | VSHL-NH220-01 | VSHL-NH220-02 | VSHL-NH220-03 | VSHL-NH220-04 | |
250W | VSHL-NH225-01 | VSHL-NH225-02 | VSHL-NH225-03 | VSHL-NH225-04 | |
Metal | 150W | VSHL-MH217-01 | VSHL-MH217-02 | VSHL-MH217-03 | VSHL-MH217-04 |
175W | VSHL-MH225-01 | VSHL-MH225-02 | VSHL-MH225-03 | VSHL-MH225-04 |
