IS-LED-F10I**(30W/55W/80W/100W)
내압 및 분진, 비점화 방폭 LED 등기구_ LED Lighting Fixtures

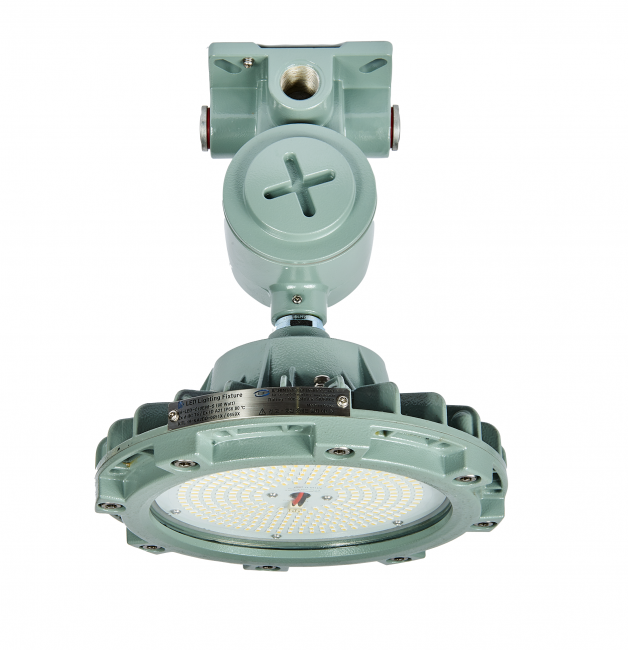

Explosion-proof LED Lighting Fixture
IS-LED-F10I** Series for Hazardous Location
Protection Grade
Ex dⅡC T6 IP66 Zone 1·2
Ex tD A21 T80℃ IP66 Zone 21·22
Ex nRc IIC T6 Gc IP66 Zone 2

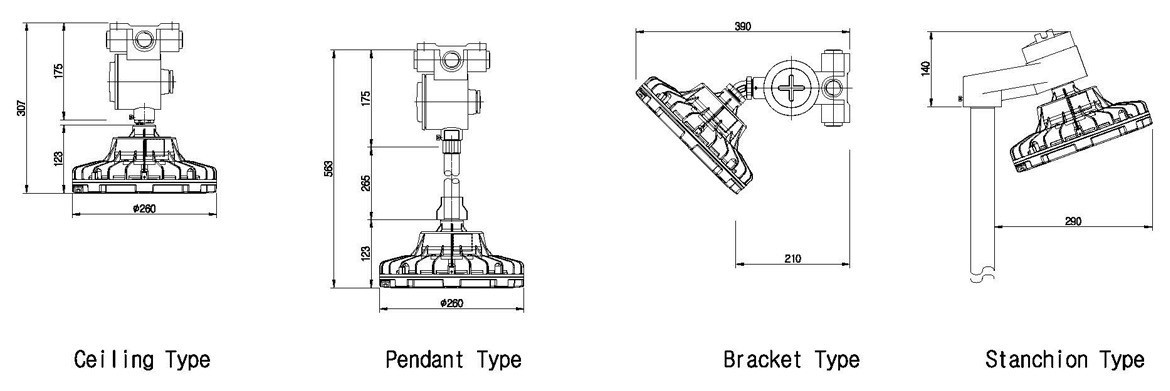

Drawing
Standard Material
- Main Body : Die-Cast Aluminium Alloy
- Holder : Die-Cast Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- SMPS Housing : Cast Aluminium Alloy
- Mounting Box : Die-Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please
◎ Technical Data
- Rated Voltage : AC 220V BELOW
- Rated Wattage : 30W / 55W / 80W / 100W
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22C), 1"(28C)
Weight

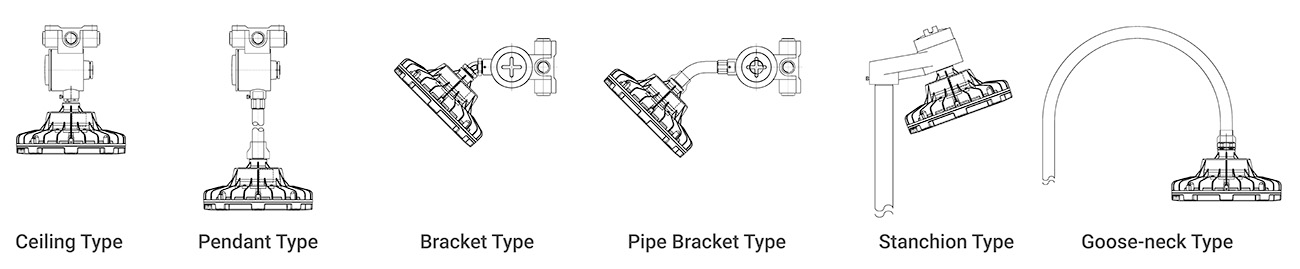

Mounting Typed | Model No. | Weight |
Ceiling | IS-LED-F10I**-C | 6.0kg |
Pendeant | IS-LED-F10I**-P | 6.8kg |
Bracket | IS-LED-F10I**-B | 6.6kg |
Stanchion | IS-LED-F10I**-GS |
|
◎ Mounting Box Hole Size
Appearance | Hole space |
124 x 124 | 100 x 100 |
◎ Ordering Number
Lamp | Watt | Ceiling Type | Pendant Type | Bracket Type | Stanchion Type |
LED | 30W | IS-LED-F10I 30-C | IS-LED-F10I 30-P | IS-LED-F10I 30-B | IS-LED-F10I 30-G,S |
LED | 55W | IS-LED-F10I 55-C | IS-LED-F10I 55-P | IS-LED-F10I 55-B | IS-LED-F10I 55-G,S |
LED | 80W | IS-LED-F10I 80-C | IS-LED-F10I 80-P | IS-LED-F10I 80-B | IS-LED-F10I 80-G,S |
LED | 100W | IS-LED-F10I 100-C | IS-LED-F10I 100-P | IS-LED-F10I 100-B | IS-LED-F10I 100-G,S |
