FGHL(NH, MH)
Explosion-proof Integral Ballast H.I.D Lighting Fixture
FGHL Series for Hazardous Location
Protection Grade
Ex d ⅡB+H2 T4 IP66 for Zone 1·2

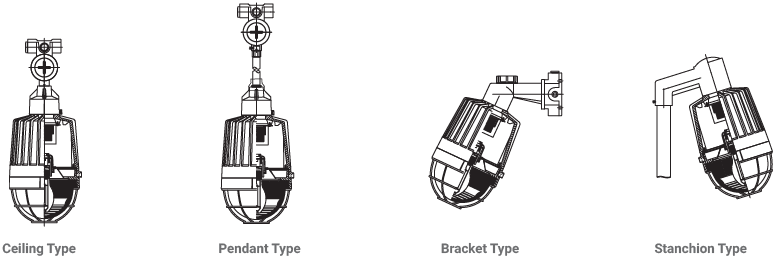

Drawing
Standard Material
- Main Body : Die-Cast Aluminum Alloy
- Holder : Die-Cast Aluminum Alloy
- Glass : Heat Resistant Hard Glass
- Guard : Stainless Steel
- Mounting Box : Die-Cast Aluminium Alloy
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please
◎ Technical Data
- Rated Voltage : AC 110/220V Below
- Rated Wattage : 250W Below
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22), 1"(28C)
Weight
Mounting Typed | Model No. | Weight |
Ceiling | FGHL-01 | 16kg |
Pendeant | FGHL-02 | 16.5kg |
Bracket | FGHL-03 | 16.5kg |
Stanchion | FGHL-04 | 16.5kg |
◎ Mounting Box Hole Size
Appearance | Hole space |
124 x 124 | 100 x 100 |
Ordering Number
Lamp | Watt | Ceiling Type | Pendant Type | Bracket Type | Stanchion Type |
High | 100W | FGHL-NH210-01 | FGHL-NH210-02 | FGHL-NH210-03 | FGHL-NH210-04 |
150W | FGHL-NH215-01 | FGHL-NH215-02 | FGHL-NH215-03 | FGHL-NH215-04 | |
200W | FGHL-NH220-01 | FGHL-NH220-02 | FGHL-NH220-03 | FGHL-NH220-04 | |
250W | FGHL-NH225-01 | FGHL-NH225-02 | FGHL-NH225-03 | FGHL-NH225-04 | |
Metal | 175W | FGHL-MH217-01 | FGHL-MH217-02 | FGHL-MH217-03 | FGHL-MH217-04 |
250W | FGHL-MH225-01 | FGHL-MH225-02 | FGHL-MH225-03 | FGHL-MH225-04 |
