IS-EPCS-**

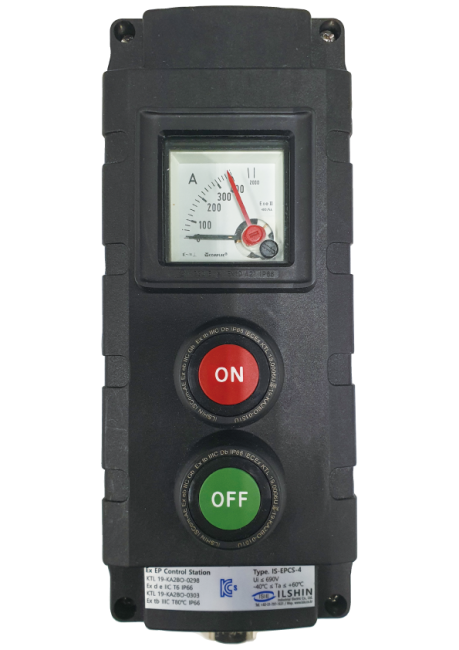

Explosion-proof GRP Control Station
EPCS Series for Hazardous Location
Protection Grade
Ex db eb IIC T6 Gb IP66 for Zone 21·22 (IECEx)
Ex tb IIIC T80℃ Db IP66 for Zone 21·22 (IECEx)
Ambient temperature
Tamb : -40℃ ~ +60℃
Drawing
Speciflcation
- Main Body : Engineering plastic (GRP) - ISCOM-MD Series privately ask
- Terminal Box : Engineering plastic (GRP) - ISCOM-AE Series privately ask
- Bolt & Washer : Stainless Steel
- Unit : Push Button, Selector Switch
Emergency Switch, Pilot Lamp (Color : Red, Green, Yellow)
- Rating : 690V Less than, 13A Less than (Switch), 10A Less than (Ammeter)
- Iscom : AE(Operating parts)series, MD(Modular device)series, Ex ammeter
Ex accessories combination of parts
Ordering Number
Model No. | Width(A) | Height(B) | Depth(C) | Mount(D) | Mount(E) |
IS-EPCS-1 | 94 | 97 | 80 | 80 | 63 |
IS-EPCS-1-TB | 94 | 194 | 80 | 80 | 63 |
IS-EPCS-2 | 94 | 139 | 80 | 80 | 105 |
IS-EPCS-2-TB | 94 | 236 | 80 | 80 | 105 |
IS-EPCS-3 | 94 | 188 | 80 | 80 | 150 |
IS-EPCS-3-TB | 94 | 285 | 80 | 80 | 150 |
IS-EPCS-4 | 94 | 230 | 80 | 80 | 190 |
IS-EPCS-4-TB | 94 | 327 | 80 | 80 | 190 |
