IJBC

Increased Safety Junction Box
IJBC Series for Hazardous Location

Protection Grade
Ex e ⅡC T6 IP66 for Zone 1·2

Ex tD A21 IP66 T85℃ for Zone 21·22

List

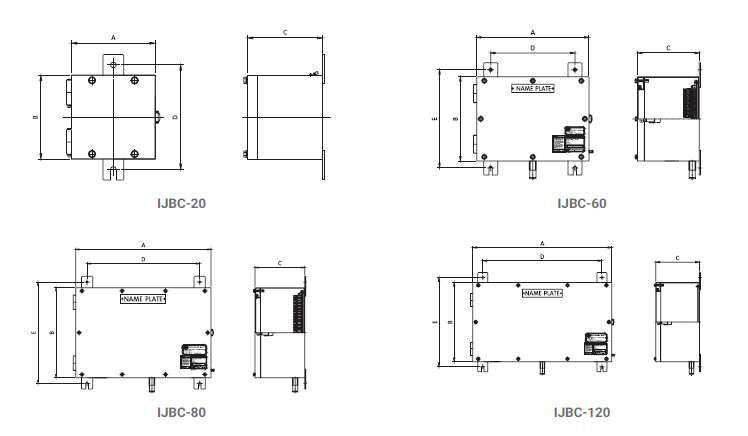

Drawing




Specification

- Main Body & Cover : Stainless Steel
- Packing : EPDM Rubber
- Cover Bolt & Washer : Stainless Steel

- Tamb : -20°C ≤ Ta ≤ +50°C

Features

- Stainless steel
- Easy installation and maintenance.
- Good resistant to corrosive environment.
- Ingress Protection Code:IP-66
- IEC Standard Code: IEC60079-7

Dimension(mm)

Model No.

Width(A)

Height(B)

Depth(C)

Mount(D)

Mount(E)

Stainless Steel Plate

Certiflcate

IJBC-20

200

200

180

250

-

110 x 140

Ex e, tD

IJBC-40

400

300

220

300

350

310 x 240

 Ex e, tD

IJBC-60

500

400

220

400

450

410 x 340

 Ex e, tD

IJBC-80

600

400

220

500

450

510 x 340

 Ex e, tD

IJBC-120

700

400

220

600

450

610 x 240

Ex e, tD

IJBC-120W

600

600

500

500

650

510 x 540

 Ex e

IJBC-3030

300

300

220

200

350

210 x 240

 Ex e, tD

IJBC-5050

500

500

220

400

550

310 x 340

 Ex e, tD

IJBC-6060

600

600

220

500

650

410 x 440

 Ex e, tD

IJBC-6191

610

916

236

455

945

510 x 540

 Ex e, tD
