CSTB

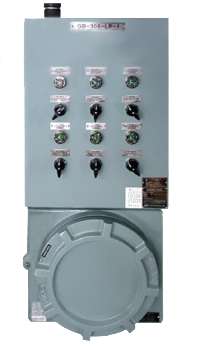

Flame-proof Control Panel
CSTB Series for Hazardous Location
Protection Grade
Ex dⅡC T6 for Zone 1·2

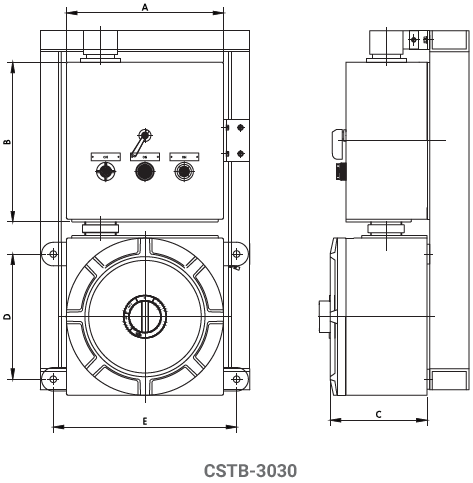

Drawing
Specification
- Main Body : Cast Aluminium Alloy
- Cover : Cast Aluminium Alloy
- Bolt & Nut : Stainless steel
- Rotate the bottom of the maintenance work.
- Cover to rotate the structure to the way the threads
Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please.
Ordering Number
Model No. | Width(A) | Height(B) | Depth(C) | Mount(D) | Mount(E) |
CSTB-3030 | 300 | 300 | 185 | 360 | 456 |
CSTB-3540 | 400 | 350 | 288 | 458 | 275 |

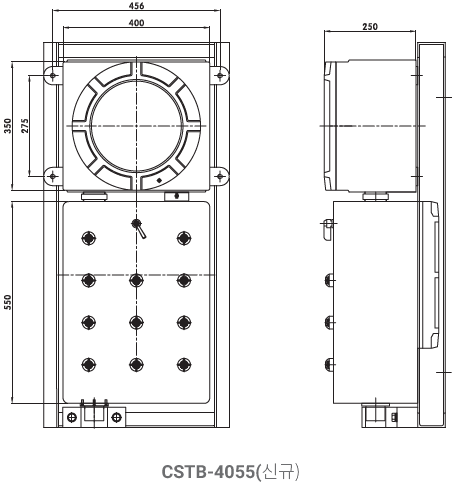

CSTB-4055 | 400 | 550 | 285 | 455 | 450 |
