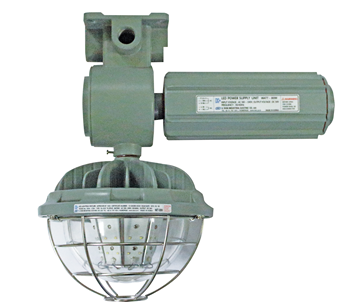

FGHL-C10**(30W/55W/80W)

Explosion-proof LED Lighting Fixture
FGHL-C10** Series for Hazardous Location


Protection Grade
Ex dⅡC T6 IP65 Zone 1·2

List

Drawing






Standard Material

- Main Body : Die-Cast Aluminium Alloy
- Holder : Die-Cast Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- Guard : Stainless Steel
- SMPS Housing : Cast Aluminium Alloy
- Mounting Box : Die-Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel

◎ Standard Color
- Munsell no. 7.5BG 6/1.5
  If you want other color, contact us please

◎ Technical Data
- ​Rated Voltage : AC 220V BELOW
- Rated Wattage : 30W / 55W / 80W
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22), 1"(28C)

Weight

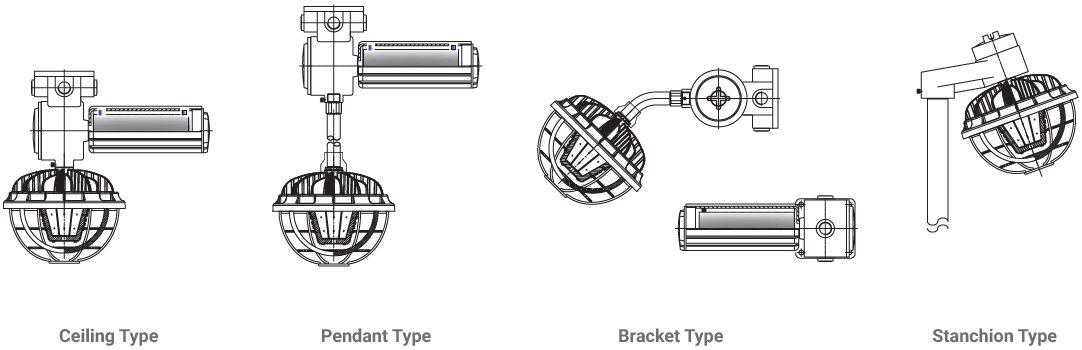

Mounting Typed

Model No.

Weight

Ceiling

FGHL-C10**-01

 8.8kg

Pendeant

FGHL-C10**-02

 9.5kg

Bracket

FGHL-C10**-03

 9.3kg

Stanchion

FGHL-C10**-04




◎ Mounting Box Hole Size

Appearance

Hole space

 124 x 124

100 x 100


◎ Ordering Number

 Lamp

Watt

Ceiling Type

Pendant Type

Bracket Type

Stanchion Type

LED

30W

FGHL-C1030-01

FGHL-C1030-02

FGHL-C1030-03

FGHL-C1030-04

LED

55W

FGHL-C1055-01

FGHL-C1055-02

FGHL-C1055-03

FGHL-C1055-04

LED

80W

FGHL-C1080-01

FGHL-C1080-02

FGHL-C1080-03

FGHL-C1080-04
